Home /Products/Gold Mining Machine/Gold Mining Machinery Gravity Vibration Table Gold/Copper/Zinc/Chrome Concentrator

Gold Mining Machinery Gravity Vibration Table Gold/Copper/Zinc/Chrome Concentrator

1.0 Sets
MOQ
Gold Mining Machinery Gravity Vibration Table Gold/Copper/Zinc/Chrome Concentrator
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Manufacturing Plant, Energy & Mining
Showroom Location: None
Condition: New
Type: Table Concentrator
Production Capacity: 3t/h
Voltage: 380V
Dimension(L*W*H): According To Model
Weight: 2000 KG
Warranty: 1 Year
Marketing Type: New Product 2021
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Motor
Key Selling Points: High Rigidity
Feeding Density: 15%-25%
Feeding Size: 0-2mm
Capacity: 0.5-2 Tons/hour
Frequency: 45-48f
Water Needing: 1-7 Tons Per Hour
Transverse Slope Of Deck: 2.30-4.30 Degree
Longitudinal Slope Of Deck: 1.4 Degree
Application: Gold
Basic Infomation
Payment & Shipping Terms
Packaging Details: Container shipping
Supply Ability: 400 Set/Sets per Year
Product Description
Product Description

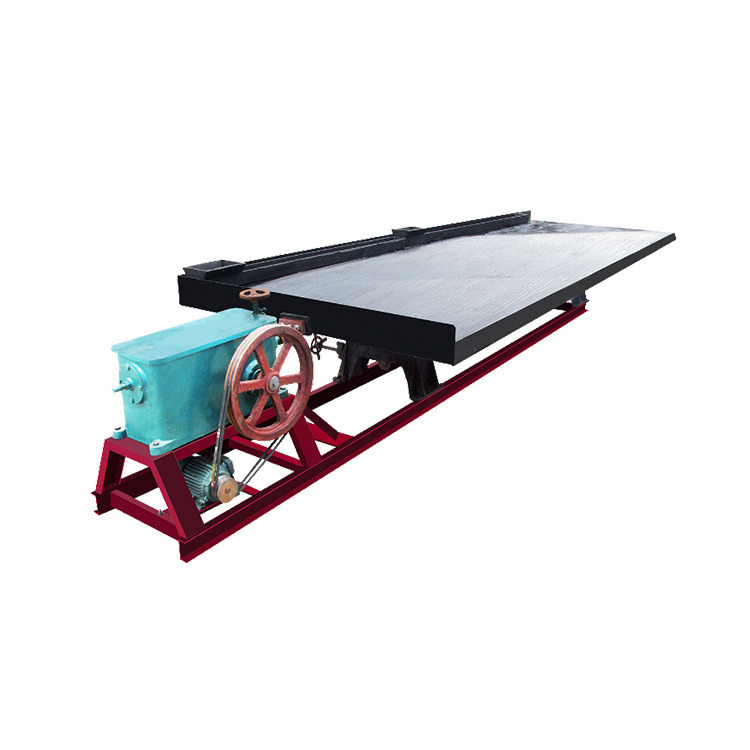

Shaking table is a mine selecting machine for fine materials working by gravity. It is Widely used in tin, tungsten, gold, silver, lead, zinc, antimony, bismuth, iron, manganese, titanium, iron and coal.Our factory has a long history of producing shaking table,And constantly developing innovation,From the initial straight shaking table to the single curved wave shaking table (in the 70s of last century); to the hyperbolic wave shaking table(in the 90s of last century),The amount, recovery, and enrichment ratio of the shaker are all greatly increased.
Working Principle
The equipment mainly consists of eight systems,such as the head of the shaker ,the electric motor , the slope adjuster, Table surface,Ore feeding Chute, water feeding chute,riffle and the lubrication system.Use the difference in the proportion of minerals being sorted,shaking table head provides differential movement,Inclined water flow and different types of bed strips Make the Mineral particle swarm re loosely stratified on the bed surface.Selective transport, On the surface of the shaker, creates a fan-shaped distribution on the bed which leads to different rich and poor products.
Advantages of Shaking Table 1.High recovery rate 2.Easy to install 3.Easy to adjust 4.No pollution 5.Easy to operate
Product Paramenters
Name
Grit concentrator table
Fine sand concentrator table
Sludge concentrator table
Bed Surface Dimensions
Length(mm)
4450
4450
4450
Driving part width (mm)
1855
1855
1855
Concentrate part width (mm)
1546
1546
1546
Max. Feeding size(mm)
2
0.5
0.15
Feeding amount(t/d)
30-60
10-20
15-25
Feeding thickness(%)
25-30
20-25
15-25
Stroke(mm)
16-22
11-16
8-16
Bed surface Water quantity(t/d)
80-150
30-60
10-17
Bed surface Horizontal obliquity (°)
2.5-4.5
1.5-3.5
1-2
Bed surface Portrait obliquity (%)
1.4
0.92
----
Table board corner (°)
32-42
40
42
Concentrating area(m2)
7.6
7.6
7.6
Bed surface length ratio
2.6
2.6
2.6
Shape of side-bed surface
Rectangle
Zigzag
Triangle
Motor power ( kw )
1.1
