Jaw crusher is mainly composed of fixed jaw plate, movable jaw plate, frame, upper and lower protection plate, adjusting seat, moving jaw rod and so on. A good understanding of the internal structure of jaw crusher can play a very good role in the use of jaw crusher and problems.
The crushing mode of Yihan Heavy Industry jaw crusher is flexion extrusion type, which mainly changes big stones into small stones. When working, the motor drives the belt and belt pulley, through the eccentric shaft to move the jaw up and down, when the jaw rises, the elbow plate and jaw Angle becomes larger, so as to promote the jaw plate to the fixed jaw plate close, and at the same time the material is crushed or split, to achieve the purpose of crushing.
Material through the extrusion, rubbing, grinding between the two jaw plate to achieve multiple crushing, has broken materials under the action of gravity, through the mouth of the lower jaw cavity free discharge, with the continuous rotation of the motor, moving jaw to do periodic crushing and discharge, to achieve mass production.

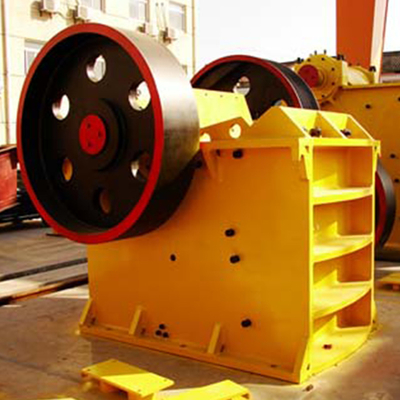

YIHAN PE-250*400 diesel jaw crusher engine stone jaw crusher stone crusher with diesel engine
| Specifications and performance parameters |
| MODEL | MODEL | Inlet Size (mm) |
Max Feed Size(mm) | Discharg port adjustmnt range (mm) |
Power (kw) |
processing capacity (t/h) |
Outer Size (LxWxH)(mm) |
|
| Fine jaw crusher |
YH-PEX250x1200 | 250x1200 | 200 | 20-60 | 37 | 20-70 | 1670x2190x1430 | |
| YH-PEX300x1300 | 300x1300 | 250 | 20-90 | 55 | 30-90 | 1870x2450x1650 | ||
| YH-PEX500x1500 | 500x1500 | 450 | 40-100 | 45 | 50-120 | 2070x2650x1750 | ||
| Jaw crusher |
YH-PE400x600 | 400x600 | 350 | 40-100 | 30 | 14-36 | 1700x1732x1656 | |
| YH-PE500x750 | 500x750 | 450 | 50-120 | 45 | 30-80 | 2035x1921x2000 | ||
| YH-PE600x900 | 600x900 | 550 | 75-200 | 75 | 56-192 | 2280x2245x2320 | ||
| YH-PE750x1060 | 750x1060 | 700 | 80-235 | 110 | 108-256 | 2531x2370x2785 | ||
| YH-PE900x1200 | 900x1200 | 800 | 95-265 | 132 | 186-396 | 3160x2770x3160 | ||
| YH-PE1200x1500 | 1200x1500 | 1100 | 150-300 | 200 | 400-800 | 4590x3732x3843 | ||
Simple structure and convenient maintenance
Jaw crusher simple structure, easy operation and maintenance; Special centralized lubrication system, lubrication faster, less maintenance work.
High utilization rate unique cavity type
The jaw plate can be used for four times, with high material utilization rate and long service life. Compared with similar models, the capacity is more than 15%, saving energy consumption more than 10%.
Work efficiently, steadily and reliably
Jaw crusher crushing ratio, crushing capacity, high crushing efficiency, mainly used for coarse crushing, in mining, building materials and infrastructure and other departments will also be used as a crushing machine.
Reduce spare parts for easy installation
Our factory combined with the actual feedback of customers, designed a fixed jaw plate and movable jaw plate can be common parts, can effectively reduce the number of spare parts for users, and more convenient installation.
1. Are you manufacture or trading company?
We are factory, established in 2005.
2. How long is your delivery time?
7-10 days for the stock, 15-30 days for the mass production.
3. What is your payment method?
30% deposit in T/T advance, 70% balance before shipment.
4. How long is the warranty? Does your company supply the spare parts?
One year. Spare parts for you at lowest cost.
5. If I need the complete crushing plant can you help us to build it?
Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.
