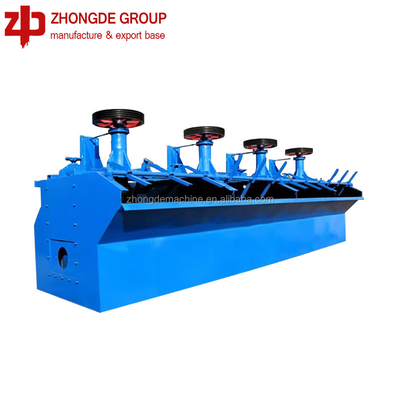

Silver, Gold, Lead Zinc Ore Beneficiation Mineral Flotation Machine by Zhongde
Flotation machine is also called flotation cell, which is the mineral separation equipment based on different physical and chemical properties of mineral particles, difference floating or chemical reaction to separate materials. The flotation machine has air suction, pulp suction and flotation functions, which can form self flotation circuit without any auxiliary equipment. It is horizontally configured, which is easy for process changes. The pulp has reasonable cycle, which can minimize the sand sediments.
Technical parameters of gold mine flotation machine
|
Model |
Effective volume (m3) |
Inside dimensions (L×W×H)(m) |
Air suction amount (m3/m² min) |
Power (KW) |
Processing capacity (m3/min) |
|
SF-0.37 |
0.37 |
0.7×0.7×0.75 |
0.9-1.05 |
1.5 |
470 |
|
SF-1.2 |
1.2 |
1.1×1.1×1.1 |
1.0-1.10 |
1.1 |
1370 |
|
SF-2.8 |
2.8 |
1.65×1.65×1.15 |
0.9-1.10 |
11 |
2130 |
|
SF-4.0 |
4.0 |
1.9×2.0×1.2 |
0.9-1.10 |
15 |
2585 |
|
SF-6.0 |
6.0 |
2.2×2.35×1.3 |
0.9-1.10 |
18.5 |
3300 |
|
SF-8.0 |
8.0 |
2.25×2.85×1.4 |
0.9-1.10 |
22 30 |
4130 |
|
SF-10 |
10 |
2.25×2.85×1.7 |
0.9-1.10 |
22 30 |
4660 |
|
SF-16 |
16 |
2.85×3.8×1.7 |
0.9-1.10 |
37 45 |
8320 |
|
SF-20 |
20 |
2.85×3.8×2.0 |
0.9-1.10 |
37 45 |
8670 |
|
SF-24 |
24 |
3.15×4.15×2.0 |
0.9-1.10 |
45 |
8970 |
Characteristics of SF gold mine flotation machine
Flotation machine is suitable for the separation of non-ferrous metals, ferrous metals, precious metals, non-metallic mineral, chemical blank parts and other raw materials.
Flotation Processing for Gold Ore, Silver Ore, Lead-zinc Ore, Manganese Ore
