Placer Gold Mining Equipment Alluvial Mineral Trommel Scrubber

Scrubber-Trommel is rotary scrubber and trommel screen Integration of one set.

It consist of three major parts, hopper, rotary scrubber, trommel screen, from hopper to rotary scrubber to wash ore, then to trommel screen for classifier. rotary scrubber and trommel screen Integration of one set, Greatly save the cost and the space.
and the scrubber and trommel length need according to your capacity and clay percentage  to process.

Mobile scrubber-trommel is composed by chassis, wheels, turntable.

Auxiliary equipment is water pump, generator, electricity control panel.

 Technical Specifications for Trommel Scrubber Washer

Remarks:

4: 2 kind drive type,one use gear for driving,one use tires for driving.

          Use gear for driving as option.

       fixed type or mobile type as option

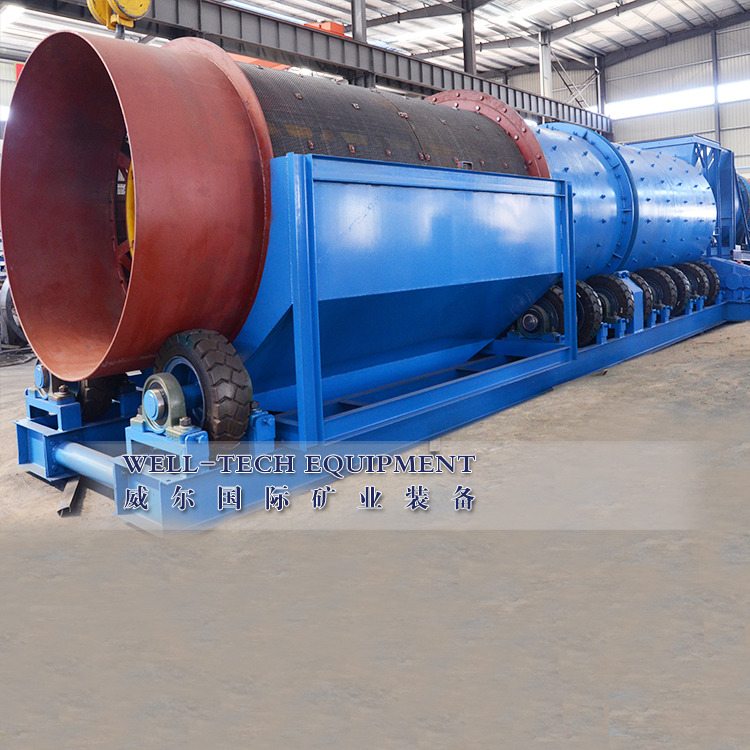

                 Use tires for driving as option

                Drum with natural thick rubber liner

Mineral processing line case show

Jiangxi Well-tech International Mining Equipment Co.,Ltd. (Gandong Mining Equipment) is a large mineral processing service company specialized in designing, manufacturing, installing and debugging of mining equipment as well as providing flow sheet design and course training of mineral processing.

Our company covers an area of 48,000 square meters, the workshop covers 20,000 square meters, we have various large modernized machinery process facilities, professional engineering team and installation team.

Now our company is the largest manufacturer and exporter of gravity dressing equipment in China.

FAQ:

Q;What’s the application of trommel screen?
A:Washing alluvial ore or screening gravel.
Q: Is your original ore sticky clay? Or only alluvial/placer sand?
1) If contain sticky clay ore, more than 30% or not?
2) Capacity?
3) -3mm materials percentage?
Q: Biggest capacity our trommel screen can process?
A: 200-300tph
Q: How big are the screen mesh size and how many layers?
A: Usually, our trommel is double layer, the inner screen mesh is 5mm, outer screen mesh is 10mm. But we can build it as you required, we will use the Ø25mm diameter round steel to build the inner steel bar, outside screen material is high manganese.
Q: If very small outer screen mesh size, will clogged?
A: We will add a steel brush onto the drum, so won’t be clogged at all. And we use the unique screen mesh design, result in longer screen life & no material clogging.

 Q: Screen mesh material?
A: We use high manganese steel to build the screen mesh which is very durable.

 Q: Can we change the screen mesh?
A: Yes, you can, usually we build the screen mesh to be active, so you can change the screen mesh size by yourself easliy on site.
Q: Driving mode?
A: Usually it’s electric motor, if you want, we can build it to be diesel engine for driving. Or build it to be diesel generator to provide power for it.
Q: If i need the complete mineral processing line. Can you help us build it?
A: Yes, we can help you combine a complete mineral processing line. and give you related professional advice as long as you need. There is a rich experienced engineers team of us, these 12 engineers always fly out of China to install, debugging our equipments on site and trainning the buyer’s staff.

Usually for alluvial ore, the flowchart is: Hopper---Trommel Screen---Vibrating Sluice/Jig/Gold Centrifugal Concentrator---Fixed Gold Sluice---Shaking Table For some other minerals, we can add magnetic separator, electric separator etc

Q: How long is the guarantee of your equipments? Does your company supply the spare parts?

A: The warranty period of is one year, if break during this guarantee period, we need to replace new one for you AT NO COST. And of course we will supply the spare parts for you for life-long time at lowest cost.

Q: Do you cut the steel plate by hand?

A: No, we use the plasma cutting machine to cut all materials which is controlled by computer. It’s very accurate.

--- PRE-SALE SERVICE

--- 1.Based on clients’ request and budget, our experts will strictly make efficient, reliable solutions accordingly;

2.Mine sample testing is available, we welcome the customer send the sample to us for testing by courier, or, the customer take the sample to our factory for testing;
3. Design and provide the complete processing flowchart;

4. Design & manufacturer products according to clients’ demands.

--- AFTER-SALE SERVICE –

-- 1.Pre-check and test the products before delivery;

2.Deliver the whole plant design for our clients which including infrastructure, electrical system and pipeline system design;

3.Trace the status of the shipping until the products received;

4.Prepare required documents to let clients pass custom clearance;

5.Dispatch experts to carry out below service on site:

1) Installation & debug of the machinery

2) Train the first-line operators & technical personnel

3) Carry out any other service clients may need

4. Provide technical exchanging & spare parts for life-long term

--- ONE STOP SOLUTION

-- 1.Starting by running the mineral beneficiation experiment. To provide our clients with the best solution accordingly;

2.Besides supply the flowchart design & equipment, we also provide the infrastructure design; Electrical & pipeline system design, etc. To help our clients complete the design of the whole plant;

3.After the installation, debugging of the equipment, the official production will also be guiding by our experienced engineers on site, to guarantee the output minerals perfectly meet your demands.
