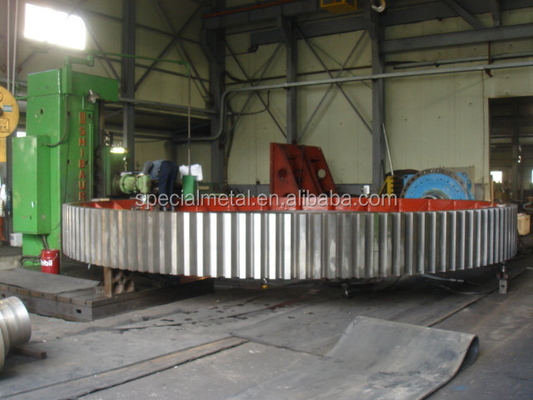

ISO ball mill girth gear pinion shaft
It's a typical and main product of CSM company, produced by casting & forging, used in ball grinding mill,
Ball mill data:
Model (mmxmm) | Speed of bucket (r/min) | Weight of ball (t) | Size of feed opening (mm) | Production (t/h) | Power (kw) |
φ900×1800 | 38 | 1.5 | ≤20 | 0.65-2 | 18.5 |
φ1200×2400 | 32 | 3.8 | ≤25 | 1.5-4.8 | 45 |
φ1500×5700 | 27 | 15 | ≤25 | 3.5-6 | 132 |
φ2200×5500 | 21 | 30 | ≤25 | 10-22 | 370 |
φ2400×10000 | 20.8 | 49 | ≤25 | 22 | 630 |
φ3000×13000 | 18.2 | 115 | ≤25 | 40-42 |
|
Inspection: NDE/NDT according to ASTM and ISO standard, including UT, MPI and TPI (Third party Inspection).
Steel foundry & Iron foundry
CSM has resin sand casting production line. Our foundry owns smelting equipments of 75T ladle refining furnace, 50T eccentricity furnace, 70T vacuum degassing furnace and electric furnace of 3T, 5T, 20T. Besides, the inspection equipments include chemical element analysis equipment, direct-reading spectrum test, mechanical property tester, impact tester, Magnetic particle inspection equipment as well as Ultrasonic fault detector. All manufacturing bases have obtained the certificates of ISO9001 and ISO14001.
Welding fabrication
CSM owns a welding factory which is nearly 10,000 square meters. It can conduct manual welding, automatic submerged arc welding and gas shield welding. The welders all have AWS certification, and they are experienced. The factory already undertook 10000+ projects. The technicists have 10 years experiences. You can trust us!
Forgings
CSM has 8000T oil press, 3T and 8T air hammer, D8.5xH1.5 CNC grinding ring machine. These equipments are used for forging and machining shafts, rings.
Machining
CSM possesses larger and precision NC machining equipments including L28xH4 CNC gantry milling machine, L14xH4.5 NC floor-type milling & boring machine, L20xD9 NC horizontal lathe, D8xH4 NC double column vertical lathe, four-axis horizontal machining centre, etc. These equipments are used for machining casting, forging, welding fabrication and other final machining.
