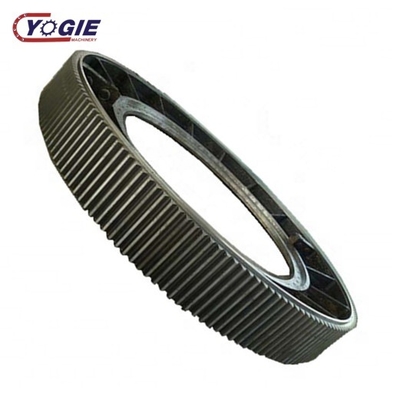

AG OEM Perimeter Heavy Duty Big Gear Ring Gear Big Spur Gear Wheel For Cement / Ball Mill

1 Piece
MOQ
$600.00(1 - 4 Pieces) $590.00(5 - 9 Pieces) $580.00(>=10 Pieces)
Price
AG OEM Perimeter Heavy Duty Big Gear Ring Gear Big Spur Gear Wheel For Cement / Ball Mill
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Warranty: 1.5 Years
Shape: Spur
Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction Works , Energy & Mining
Showroom Location: None
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Hot Product 2021
Warranty Of Core Components: 1.5 Years
Core Components: Gear, Ring Gear
Material: Steel
Product Name: Big Spur Gear Wheel
Application: AG, SAG, Ball Mill, Kiln And Dryer
Heat Treatment: Quenching And Tempering
Certificate: ISO9001
Diameter: Max To 13000mm
Module: Up To M150
Weight: Max 5T Per Piece
Insepection: Raw Material Inspection, UT,physical Property Test,dimension Inspect
Surface Treatment: Customers' Requirements
OEM Service: YES
After Warranty Service: Video Technical Support, Online Support
Local Service Location: None
Basic Infomation
Certification: ISO9001
Payment & Shipping Terms
Packaging Details: standard wooden box
Supply Ability: 100 Piece/Pieces per Month
Product Description
Product Description

Girth Gear Large Ring Gear Big Spur Gear Wheel for Cement Mixer / Ball Mill

Gear wheel ,ring gear and girth gear are often used in mechanical transmission , which are often forged or cast structure high quality and strength alloy steel with surface carburizing or hardening treatment.The gear have the high bearing capacity and durable.In practical application,which is widely used in high speed and heavy load machinery , because of its stable transmission, low impact, vibration and noise. The girth gear from our company is precisely designed using excel quality raw material. Cast rims for gear are procured by the most trusted and reliable vendors in this domain. Our quality experts check the product at each and every stage of manufacturing process according to the set international industrial standards. Our company can produce different type gear ring and wheel such as spur gear, helical gear, herringbone gear wheel and gear ring according to the customer's drawing and requirements. Our product is highly appreciated amongst customers for its superior design, dimensional accuracy, excellent strength and easy installation. It is available in different specifications according to the requirements of the customers.
Application 1. Rotary Kilns 2. Rotary Dryers 3. Ball Mills 4. Mechanical transmission
Advantage of Gear 1. Heavy load capacity,long lifespan. 2. High precision,large diameter and module 3. Stable transmission, low impact, vibration and noise 4. Easy installation

Company Advantage
1.We offer One-stop service From raw material organization to processing production and assembly 2.We have professional engineer team and the strict quality control system to guarantee the quality of the products. 3.We have many CNC advanced equipments to ensure the precision of the products
Click here,give me an inquiry
Technological Process
42CrMo,C45 ZG310-570 or other ally steel will be used as raw material according to the customer’s requirements through forging or casting method. Ultrasonic inspection will be done to ensure the material are free of pore,holes and cracks. Measuring the size of the forging,calculation the processing allowance and accurate to estimate the cutting times in the turning process.
The tooth will be hobbed on gear hobbing machine or milled on CNC gentry milling and drilling machine according to the tooth type and module.The other dimension are processed to finished size according to drawing.

Large nonstandard tooth will be milled on the CNC gantry milling and drilling machine
The conventional tooth will be hobbed on the gear hobbing machine
Surface quenching or carbonization will be done after finish machining to improve the hardness and abrasive resistance of the tooth. after the surface quenching, we will inspect the hardness of the tooth.
We have prefect and strict quality management system and experienced inspector to control the product quality.The gear will be inspected strictly according to the drawing.
By air or by sea,DHL/TNT/UPS/EMS etc.According to customer’s requirements.
Feel free to inform us in case of any inquiry.
We will answer you in 24 hours. Thahttps://lyyjindustry.en.alibaba.com/contactinfo.htmlnks!
Related Products
Click Here to Send Us Inquiry
Thank you !!!
About us

Luoyang Yujie Idustry Trade Co,Ltd is established in 2004,is mainly engaged in the designing and manufacturing of large machinery components and non-standard machinery parts according to customer's request, including shafts, gears, sprockets, mining machinery parts, weldings, bearings, castings and forgings etc. The products are mainly used in the fields of mining, petroleum, cement, steel mill, power plant, sugar factory etc.

All our equipment adopts the advanced CNC machine tools,especially large CNC gantry milling and boring machine, CNC floor-type boring machine.CNC gantry milling and boring machine,CNC machining center equipped with the fourth axis, CNC floor-type boring machine is equipped with the fourth axis and rotary worktable, it can realize five axis machining. The work piece is not limitted by the size. It is suitable for machining large module and large size gear, boxes,and large non -standard parts.

Professional technical tearm, production team and assembly team, supply professional technical support.

We product the CNC equipment ,so we have professsional assembly technicians and electrical enginess. We can provide customers with one-stop service from raw materials, processing to final assembly.

Our company has a series of advanced equipments: XV6032, HXV4032, HXV3017, HXV2017CNC gantry boring and milling machine, TX130CNC floor-type boring machine, DVT-500, HK1600CNC vertical lath, CK6136CNC horizontal lath etc,to ensure high precision and stable performance of products.

All tests conform to ISO 9001 quality management system certification standards,supporting the third party inspection commissioned by customer.
