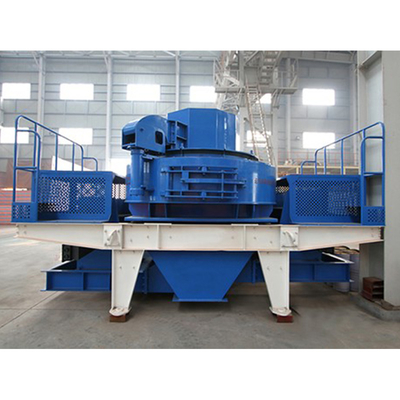

HVI sand-making mechanism sand machine comprises feed, distributor, vortex crushing chamber, impeller experience, spindle assembly, base transmission device, and motor. This series of the sand-making machine, with its particular, widely uses a wide range of complex and brittle materials such as concrete aggregate crushing, fine crushing (sand), all kinds of rocks, refractories, abrasives, cement clinker, quartz stone, iron ore.
Material by the upper machine in high speed rotating turbine broken cavity, high-speed rotating impeller under the action of centrifugal force, and the other part of the shunt in umbrella form around the impeller material to produce a high-speed smash, material after crash into each other, and between the impeller and casing layer form vortex repeatedly crash, friction, crushing, from the bottom row hopper eduction. The material forms a closed loop and manifold cycles. Screening equipment controls the granularity of the finished product
| Specifications and performance parameters |
| MODEL | Make Sand | Shaping | Make Sand | Shaping | Power(kw) |
| Max Feed Size(mm) | Through put(t/h) | ||||
| HVI 0815 | 30 | 35 | 50-140 | 90-230 | 2x75 |
| HVI 0818 | 30 | 35 | 60-190 | 110-283 | 2x90 |
| HVI 0922 | 35 | 40 | 70-210 | 150-330 | 2x110 |
| HVI 0926 | 35 | 40 | 85-240 | 170-380 | 2x132 |
| HVI 1032 | 40 | 45 | 130-278 | 180-356 | 2x160 |
| HVI 1040 | 40 | 45 | 180-284 | 250-440 | 2x200 |
| HVI 1263 | 50 | 55 | 320-498 | 370-585 | 2x315 |
Characteristics advantages
High yield and low energy consumption
The sand-making machine has the function of shaping. The product is cubic, and the accumulation density is large. In high yield, the energy consumption is 20% less than other sand-making machines, and the crushing ratio is large.
The whole machine design is compact and reasonable
The machine has novel design structure, smooth operation and can reduce 30% downtime. The equipment is small in size, easy to operate, easy to install and maintain.
Long wear life of fuselage
In the production process, stone can form a protective bottom, less wear of the fuselage, a small number of easy to wear parts made of special hard wear-resistant material, small volume, light weight, easy to replace accessories.
With mobile crushing station
Mobile sand-making machine has vital intelligence, flexible configuration, no need for piling, more freedom of transfer. It can save much workforce and capital construction costs for customers in operation.
1. Are you manufacture or trading company?
We are factory, established in 2005.
2. How long is your delivery time?
7-10 days for the stock, 15-30 days for the mass production.
3. What is your payment method?
30% deposit in T/T advance, 70% balance before shipment.
4. How long is the warranty? Does your company supply the spare parts?
One year. Spare parts for you at lowest cost.
5. If I need the complete crushing plant can you help us to build it?
Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.
