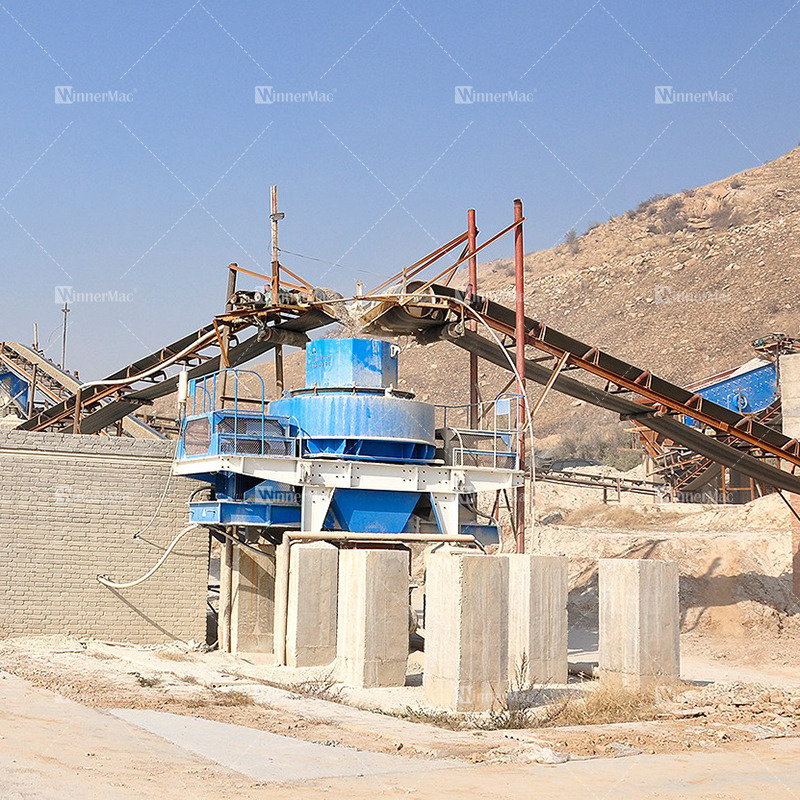

Vsi Shaft Impact Stone Crusher Mining Mobile Sand Making Machine

1.0 Sets
MOQ
$5,648.87(>=1 Sets)
Price
Vsi Shaft Impact Stone Crusher Mining Mobile Sand Making Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Bevera
Showroom Location: Egypt, Canada, Turkey, United Kingdom, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka,
Condition: New
Type: Gravity Separator
Production Capacity: Y: 0.9-1.2 T/h
Voltage: 380V
Dimension(L*W*H): Diffrent Model
Weight: 6 T
Warranty: One Year
Marketing Type: Ordinary Product
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox
Key Selling Points: Easy To Operate
Application: Mining
Keywords: Sand
Local Service Location: Egypt, Canada, Turkey, United Kingdom, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, UAE, C
Certification: ISO, CE
Basic Infomation
Certification: ISO, CE
Payment & Shipping Terms
Packaging Details: Hg
Supply Ability: 100 Set/Sets per Week
Product Description
Product Description

Product Application of sand making machine

VSI Sand Making Machine is also called a vertical sand making machine.It can process all kinds of rock,gravel and river pebbles to
be used in construction and with various grain sizes.The sand has uniformity of plasmid and high compressive strength.It is far
more in line with the construction requirements than the sand produced by natural sand and ordinary hammer sanding machine and can
improve the building quality.
Nine Features of sand making machine
The VSI sand making machine is the necessary equipment for the mechanism sand.It adopts the principle and technology of the"stone
hitting stone" crusher,which makes the finished product with excellent grain shape,reasonable gradation and improved production
efficiency,especially suitable for artificial sand making and stone shaping.
It can supply high quality sand aggregate for high building,expressway(railway) construction,municipal engineering,large scale
irrigation establishment,concrete batching plant and many other areas.
Specification
Model No.

VSI7611
VSI8518
VSI9526
VSI1140
VSI1145

Capacity
(t/h)
Cascade Feeding
120-180
200-260
300-380
450-520
500-640


Full Central Feeding
60-90
100-130
150-190
225-260
250-360

Max. Feeding size(mm)
Soft Material
35
40
45
50
50


Hard Material
30
35
40
45
45

Rotation Speed (r/min)

1700-1890
1520-1690
1360-1510
1180-1310
1100-1310

Model of Motor

Y250M-4
Y280M-4
Y315M-4
Y315L2-4
Y315L2-4

Double Motor Power

55*2
90*2
132*2
200*2
220*2

Weight (t)

10
12
16
25.6
27.5

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile


contact us

oliver @winnermac.com
Product Description

Product Application of Metallurgy stone raymond Grinder Mill

Metallurgy stone raymond Grinder Mill is Also choice for nonflammable and non-explosive minerals of which Moh’s hardness is less
than 9.3, moisture content is less than 6%, for example: quartz, feldspar, calcite, talcum, barite, fluorite, Rare earth, marble,
ceramic, aluminous bauxite, manganese ore, iron ore, copper ore, phosphorus rock, red ferric oxide, Zircon, slag, granulating
slag, cement clinker, active carbon, dolomite, granite, garnet, yellow ferric oxide, fertilizer, multiplex fertilizer, fly ash,
soft coal, coking coal, lignite, magnesite, chromium oxide green, gold ore, red clay, clay, kaolin, coal tar creosote, coal slack,
porcelain clay, cyanite, fluorspar, bentonite clay, medical stone, rhyolite, greenstone pyrophillite, shale, basalt, gypsum,
graphite.
Nine Features of Metallurgy stone raymond Grinder Mill
1) Adopting bevel gear integral drive-stystem achieves small energy loss and high efficiency.

2) Inner automatic Thin-oil lubricating system , make the operation more convenient reliable

3) Arc air channel guarantees small loss of the air volume and good material fow.

4) Cambered shovel with renewable edge.

5) Streamlined design of classifier;s top cabinet makes resistance greatly reduced.

6) Higher powder grinding efficiency and lower cost

7)No resistance snail shell (small checking door so that there is not an eddy air flow.)

8)Output size is adjsutable and controllable the powder selecting efficiency is higher than before

9) Roller device adopts linkage pressurization which is using the most advaned technology.

The technical Parameter of Metallurgy stone raymond Grinder Mill

Specification
Model
3R-2115
3R-2615
3R-2715
4R-3016
4R-3216
5R-4119
6R-4427
Roller Number
3
3
3
4
4
5
6
Roller Size(mm)
210*150
260*150
270*150
300*160
320*160
410*190
440*270
Grind Ring Size
(mm)

630*150

780*150

830*150

880*160

970*160

1290*190

1600*270
Max Feeding Size(mm)

15

20

20

20

25

30

30
Output Size(mm)

0.2-0.044






Capacity(t/h)
0.4-1.6
0.8-2.5
0.9-2.8
1.2-3.5
1.8-4.5
2.3-8.0
2.5-15
Power(kw)
15
18.5
22
30
37
132
315
Weight(t)
3.6
4.2
4.8
8.5
15
25
39.5
Overall Dimension(m)

45*28*58

56.5*33*58

56*34*59

65*41*52

99*58*106

99*67*106

99*89*110
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
