I.CPW Hammer Crusher
High-efficiency single-stage hammer crusher is a new-generation primary crusher that is improved based on the technology of single-stage hammer crusher. It is designed by combining the characteristics of materials with medium and low hardness, such as limestone of home and abroad. The most outstanding features of efficient single-stage hammer crusher are large throughput, and high rate of finished products at one time.
II. Features of CPW Hammer Crusher
1. High crushing ratio, single-stage crushing, compact structure, large capacity.
2. Fixed crushing cavity, high rigidity, easy maintenance and fixation.
3. With long crushing cavity, the crusher can completely crush and reshape materials.
4. For features of no-grate, no-grinding and low over-crushing ratio, the crusher has high qualified final products. No-block makes it suitable for wet materials.
5. Rotor with multi-production can avoid great accidents in case the hammer plate break.
6. Easy adjustment.
7. The crusher racks can be opened. It is easy to replace the inner wear parts.
III. Intelligent Functions of CPW Hammer Crushers
1. Real time monitoring on the abrasion of the impact liner plate is executed, so that a reminder for replacement can be released in time.
2. The machine can shut down automatically upon receipt of fault alarm for hammer fracture, due to real time monitoring on the vibration of the bearing seats.
3. The start-up self-checking function makes the start and stop process of the machine safer and more reliable.
4. Various sensors are applied to achieve a full range real-time monitoring of all subsystems and key parts on the equipment, which makes accurate control, safety production, fault diagnosis, etc. come true.
5. With networking function, local data collected can be uploaded to realize the remote monitoring on equipment working conditions in real-time and analysis on historical big data.
IV. Specifications of CPW Hammer Crusher
Model | Rotor Diameter X Length (mm) | Feed Size (mm) | Main Shaft Speed(r/min) | Discharge Size (mm) | Capacity (t/h) | Power (kW) | Weight (kg) |
CPW-1413 | 1455X1300 | <=600X600X700 | 520 | 50-80 | 160-300 | 185 | 25656 |
CPW-1616 | 1630X1540 | <=750X750X800 | 463 | <=100 | 330-500 | 250x2 | 35000 |
CPW-1818 | 1830X1810 | <=800X800X1000 | 390 | <=100 | 650-800 | 400x2 | 64500 |

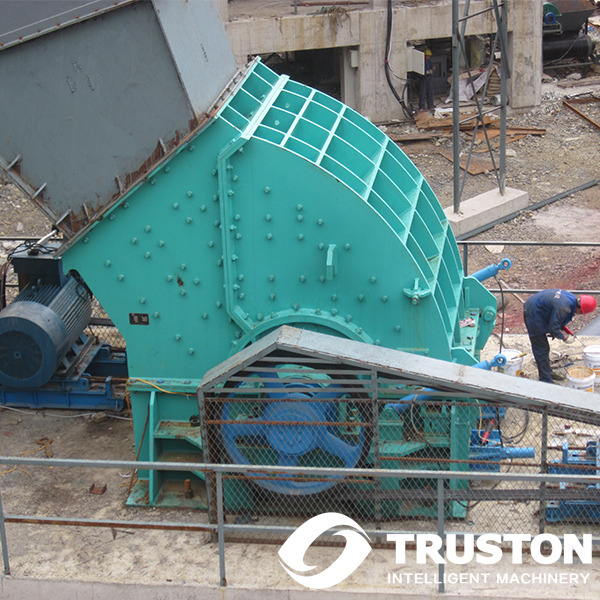

V. Pictures of CPW Hammer Crusher
VI. Company Introduction
Shanghai Unitruston Intelligent Technology Co., Ltd. (TRUSTON CRUSHER) was established in 2008, and got investment fund from TECHSHEEN group in 2013.
TRUSTON CRUSHER commits to design, manufacture, market, install and debug all kinds of jaw, cone, impact, hammer, VSI, roller and screen-type crushers, and complete crushing and screening plant, complete sand making plant, and complete grinding mill system.
Presently, TRUSTON CRUSHER invested RMB420000000 to build an intelligent heavy-type mining machinery industrial park in Shanghai Free Trade Zone—Lingang Heavy Industry Area. This modern new factory will be completed in second half year of 2016, at that time, it will become the most powerful production base of intelligent crushing and screening equipment in China.
