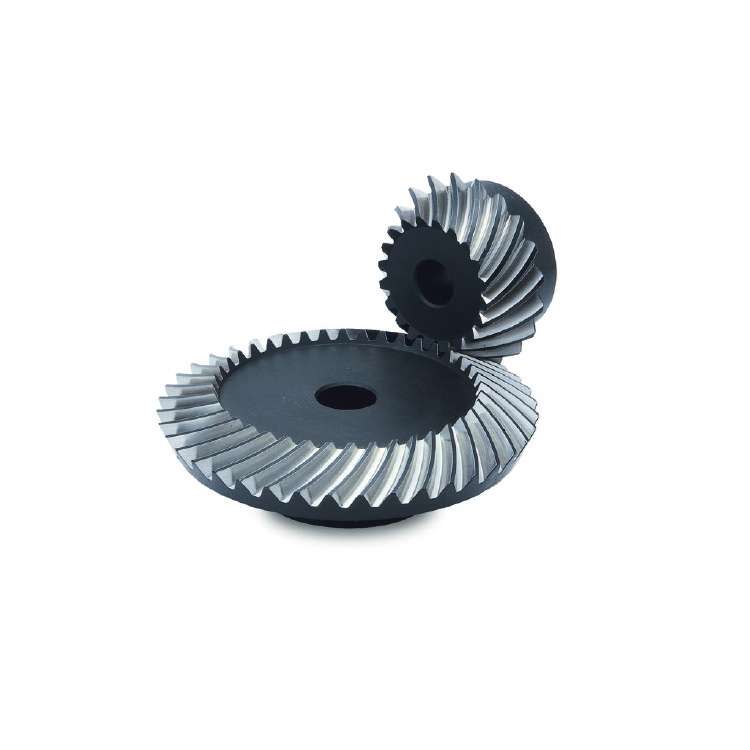

OEM Gleason Automatic Industrial Ground Spiral Pinion Bevel Gear

10.0 Sets
MOQ
OEM Gleason Automatic Industrial Ground Spiral Pinion Bevel Gear
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Warranty: 1.5 Years
Shape: BEVEL
Applicable Industries: Auto
Weight (KG): 3.2
Showroom Location: United Kingdom
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty Of Core Components: 6 Months
Core Components: Gear
Tooth Profile: Bevel, Bevel
Direction: Right Hand
Material: SCM415, Steel
Processing: Milling, ASTM/AGMA/ANSI/DIN/JIS/ISO/GB
Pressure Angle: 20°, 20
Standard Or Nonstandard: Nonstandard
Outer Diameter: 81.1 Mm
Product Name: OEM Gleason Industrial Ground Spiral Bevel Gears Conical Gear
Spiral Angle: 35
Heat Treatment: Carburizing+ Quenching
After Warranty Service: Online Support
Basic Infomation
Payment & Shipping Terms
Packaging Details: Standard export package
Supply Ability: 20000 Piece/Pieces per Month
Product Description
Products Description
Specification
Precision grade
ISO grade 5, AGMA grade 13
Pressure angle
20°
Material
SCM415, 15CrMo, 9310
Heat treatment
Carburizing
Tooth hardness
55~60 HRC
Surface treatment
light oiled
Module
No. of teeth
Direction of spiral
Bore (AH7)
Pitch dia. (C)
Outside Dia. (D)
Face width  (J)
Mounting distance (E)
Total length (F)
2
40
right
15
80
81.1
14
45
31.78
2
20
left
12
40
44.1
14
55
28.16
2.5
40
right
16
100
101.29
17
50
33.35
2.5
20
left
12
50
55.12
17
65
31.01
3
40
right
20
120
121.57
20
60
39.81
3
20
left
16
60
66.03
20
80
38.9
4
40
right
25
160
162.06
27
75
48.27
4
20
left
20
80
88.46
27
100
45.38
Company Profile
Shanghai Michigan Mechanical Co. Ltd - Concentrate on OEM Transmission Parts for More Than 15 Years.
Mission: Supporting the Further Success of Clients and Partners with Mechanical Solution & Premium Service.
Core Value: Customer First, Integrity, Never Stop Improving.
Related Products

Spiral Bevel Gears for Cement Vertical Mill

375 Spiral Bevel Gears for Oil Drilling Machine

Zero Bevel Gears
Alternate to staight bevel gears

Hypoid Gears
High RPM, high Precision,low noise

High Precision Power Transmission Gears for Machine Tools

Non-orthogonal Spiral Bevel Gears

Precision Gears for UAV
Involute Spline Gears
Gears for Industrial Robot
Production Process
Raw Material Rough Cutting Gear Turning Quenching & Tempering
Gear Milling Heat Treatment Gear Grinding Testing
Testing
Gleason 1500GMM Inspection Center
Diameter: 1500
Max Weight:4.5t
Links CNC3906 Inspection Center
Diameter: 600
Automatic Inspection Line
How Do Our Technical And Quality Team Support Our Clients And Partners?
Our english speaking engineers do not simply relay messages. We help both customers and partners to strive for real solutions and we practise Kaizen in every single work.

Quality Warranty : 12 months counting from the delivery of the goods.
Product packaging
Inner Package Carton Non-solid Wood Packing Iron box packing
To be packed in new strong case(s)/carton(s), suitable for long distance ocean/air and inland transportation. In addition,we are willing to customize packaging per your request.
Certifications

ISO 9001 certification

ISO/TS 16949 certification

Main Application Fields
Over 15 years accumulating, SMM gears are used in various industries in numerous machines. The main application fields
including,but not limited to machine tools,UAV,Tobacco machinery,new energy automobile,electical tools,cement vertical mill,oil drilling machine.

SMM have been working with some global leading companies more than 10 years.
Why Choose Us
Being proactive, we constantly recognize and strive for opportunities that are beneficial to customers and self-improvement;Action speaks louder than words, we make fast decisions on the needs of customers, suppliers and employees. We are Ready to Support Your Further Success! ——SMM TEAM
