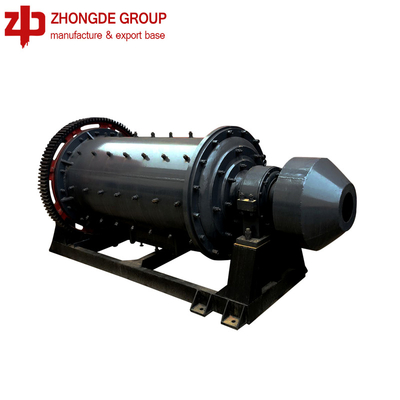

A Ball Mill grinds material by rotating a cylinder with steel grinding balls, causing the balls to fall back into the cylinder and onto the material to be ground. The rotation is usually between 4 to 20 revolutions per minute, depending upon the diameter of the mill. The larger the diameter, the slower the rotation. If the peripheral speed of the mill is too great, it begins to act like a centrifuge and the balls do not fall back, but stay on the perimeter of the mill.
The point where the mill becomes a centrifuge is called the "Critical Speed", and ball mills usually operate at 65% to 75% of the critical speed.
Application:
Ball mill is the key equipment for grinding after the crush process, and it is widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics.
It also can be used for the dry and wet grinding for all kinds of ores and other grind-able materials.
Ball Mill Technical Parameters
Types:
Mill could be sorted as following:
As per the grinding media: ball mill, rod mill and AG Mill (without grinding media).
As per material discharging mode: wet grid mill, dry grid mill & overflow mill.
As per driving mode: side & central driving. The former is more popular now.
As per driving configuration:
a. Asynchronous motor driving: Asynchronous motor + Reducer + Pinion +Girth gear
b. Synchronous motor driving: Synchronous motor+ Air clutch+ Pinion +Girth gear
c. Asynchronous motor + reducer + diaphragm coupling
Structure of Ball mill:
The machine is composed of feeding part, discharging part, turning part and driving part (reducer, small driving gear, electric motor and electric control).
The quill shaft adopts cast steel part and the liner is detachable. The turning gearwheel adopts casting hobbing process and the drum is equipped with wear-resistant liner, which has good wear-resistance.
Zhongde supply timely,safely shipping service,inlcude multiple shipping method according to delivery region. We protect your order with extreme care based on rich export experience.
Luoyang Zhongde Heavy Industries Co., Ltd, whose predecessor was Luoyang Mining Machinery Cement Equipment Factory, was founded in 1959. Over the past 50 years, Zhongde has made significant contribution to the economic development in China. In 1995, it took the lead in changing into the joint stock company, which had brought a rapid development to the company. In 2006, the old factory relocated into the large modern industrial workshop in Luoxin Industrial Park, Luoyang city, the middle of China.
We are a professional manufacturer of mining equipments, such as crusher, mining mill, tube mill, rotary kiln, cooler, rotary dryer, magnetic separator, flotation machine, thickener, etc. Our machines are widely used in the fields of mine, smelting, chemicals, building materials, coal, refractory materials, ceramics, etc. Moreover, technological designs on program, process flow, standard& non-standard parts are also provided from the beginning to the end for clients.
The total area of the three standard heavy-duty industrial workshops covers 70000 square meters. More than 500 sets advanced processing equipments, including 300 sets of high-precision digital control machine tools, large-sized processing equipment and special processing, riveting& installing machines, are introduced to guarantee for product qualityand company development.
In 2010, we have accessed the ISO9001:2008 certification, and in 2012 we have acquired the BVQI certificate. To establish the business with credit and honesty is our management belief all the time.
Zhongde offers ISO and CE certification's quality.
and many other honors by local authorites such as
Henan Famous Quality Brand
We provide our customers with a whole set of services:
Pre-sale service
Provide you with project and process design, formulate the plan for purchasing, design and manufacture the products according to your special requirements and train your operators.
Selling service
Help you to check the equipments before acceptance, draw up the construction scheme and the detailed process.
After-sale service
Dispatch our technicians to your construction site to guide the installation, test the site and train your operators.
Thank you for your time browsing our site.
At Zhongde, we are 'Focused on quality... Committed to excellence'. The highest quality and the latest technology are incorporated into every one of our products.
Wirte your requirements in message box here as belows ⇓⇓⇓
If you need quality machinery with the latest technology, the best price, and the quickest delivery then Zhongde is your answer. Contact Zhongde today for your needs., we are pleased to discuss your requirements.
